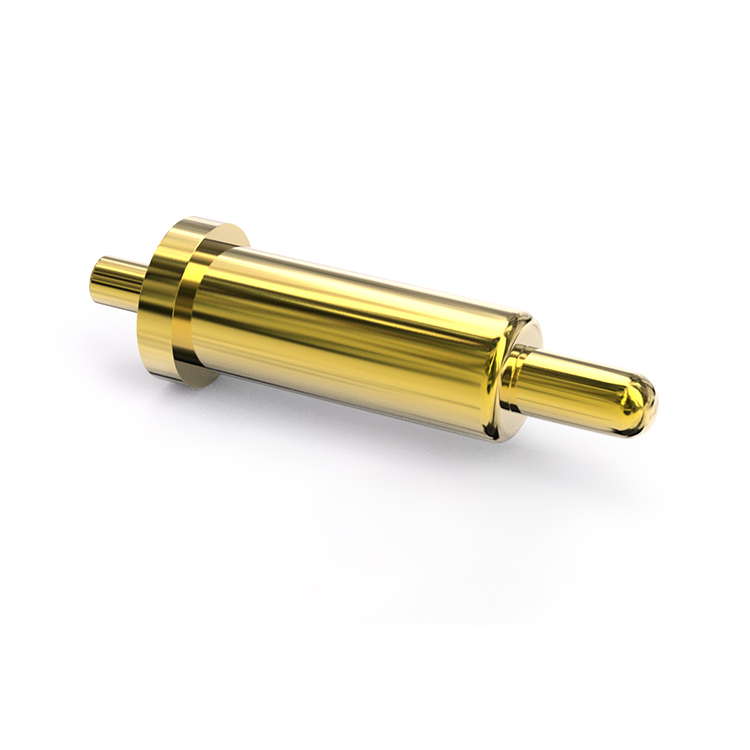

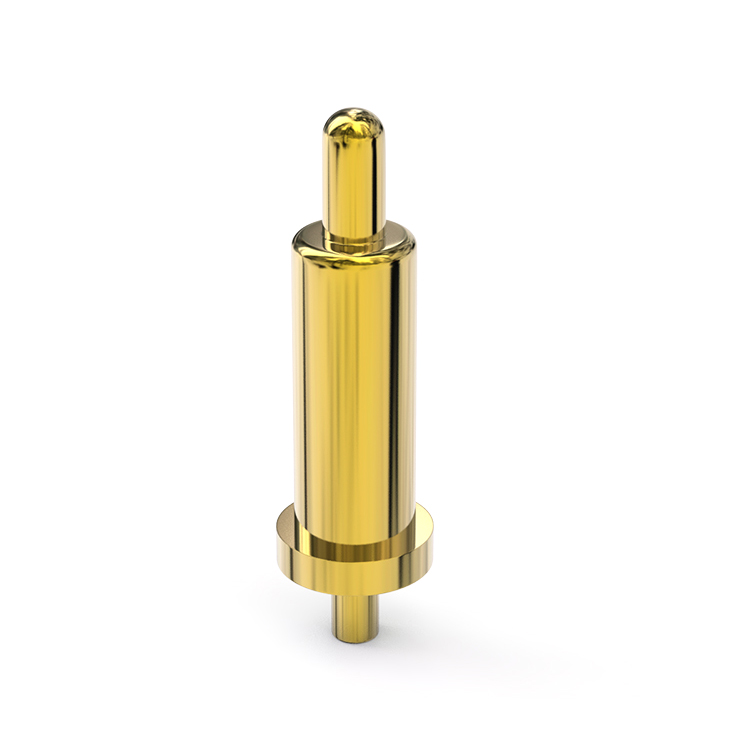

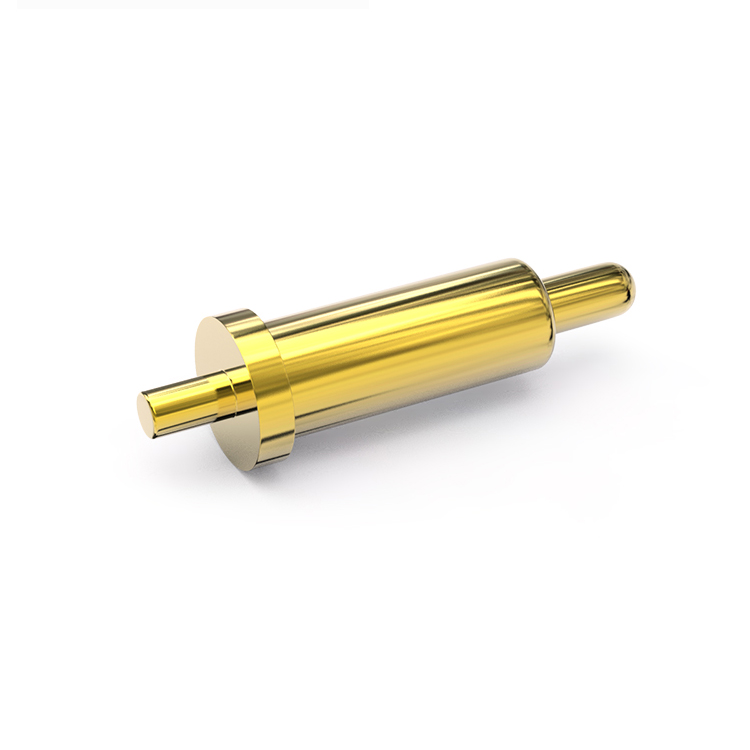

Through-Hole Small Spring Test Loaded Rolling Male Pogo Pin

Through-Hole Small Spring Test Loaded Rolling Male Pogo Pin,UPE is professional custom manufacturer in manufacturing connector componentsm including POGO PIN, POGO PIN connector.

List price：￥0.00

Price：￥0.00

MemberPrice：

Ordinary：￥0.00

VIP：￥0.00

Weight：0.000KG

Quantity：

Buy now

Add to cart

Description

Through-Hole Small Spring Test Loaded Rolling Male Pogo Pin,UPE is professional custom manufacturer in manufacturing connector componentsm including POGO PIN, POGO PIN connector.

Through-Hole Small Spring Test Loaded Rolling Male Pogo Pin

UPE is professional manufacturer of pogo pin and pogo pin connector

UPE also provide professional POGO PIN customization service

UPE pogo pin internal structure according to customer requirements to match suitable one

Spring-Loaded Pogo Pin Connector parameter performance

Name of Parts	Parameter performance table
Barrel Materia	Brass	Beryllium copper	Phosphor Bronze
Plunger Material	Brass	Beryllium copper	Phosphor Bronze	Stainless steel
Spring options	Stainle	Music wire
Plating requirements	Gold-Au	Silver-Ag	Palladium-Nickel (Pd-Ni)
Rated Current	1A, 2A, 3A ,5A,15A or 30A (different structures)
Rated Voltage	DC 12V 24V
Contact Resistance	30mΩ 50mΩ Max. (stillness)
Life test	50,000 cycles Min. 1000,000 cycles Max
Reflow Temp.	265°, 4~5sec
POGO PIN Reliability Test
Retention Force	At rated cycling of 500±50 per hour,50,000 cycles minimum
Humidity	EIA-364-31,Test method II, Condition A Subject mated connectors to relative humidity of 90% to 95%RH and a temperature of 40℃ ± 2℃ relative humidity for 96 hour.
Resistance to Solder Heat	EIA-364-56,Procedure 5,Level 2 265℃+10/-0℃for 30 to 35 seconds
Salt Spray	EIA-364-26,Test condition B Subject mated connectors to 5±1% salt-solution concentration, 35+1℃/-2℃ for 48 hours.
Spring force test	Normal Force Test Procedure,100g±20g at working height
Temperature Life	EIA-364-17,Test method A,condition 4,Test time condition A Subject mated connectors to 85℃± 2℃ for 96 hours.
Solderability	EIA-364-52 Dip into the 265±5℃, 60/40±5% Sn/pb solder for 4.0~5.0 second
Contact Resistance	EIA-364-23 Measure the contact resistance with a test current of 100 mA maximum and 20 mV voltage maximum

Pogo Pin Connector consists of 6 parts:Plunger,Barrel,Spring,Ceramic beads,housing,Cap

Male And Female Spring Loaded Connector 2 Pin Solder Cup Connectors 0

Product Application:

1)PCB board;
2)Digital camera/Medical products/ Printer cartridges;
3)Golf handle/ Electric vehicles/ Telephony applications;
4)Cardiac defibrillator/Car charging /Air purifier;
5)LED flat luminaries/LED flash light/Tablet/Laptop/PC ;
6)Power bank/ Digital product/ Small household electrical application;
7)Charging products/Signal transmission products etc

Our Advantage and your choice:

. UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.

. UPE developed 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.

. Pogo Pin Life test up to 1000,000 cycles.

. All products can pass HF, RoHS REACH standard.

. 100% electrical test provided report before delivery the goods.

. Custom of various shapes is available, small structure and high current.

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components
