2.8mm pitch 2pin magnetic connector male female  magnetic power connector with PA9T housing

2.8mm pitch 2pin magnetic connector male female  magnetic power connector with PA9T housing,high-performance magnetic connectors featuring spring-loaded pogo pins for reliable electrical connections with automatic magnetic alignment.

UPE is a professional magnetic connector & magnetic cable connector manufacturer. We have our own professional designers to meet any of your requirements and provide magnetic connector customization service.

• Material: Plunger: Brass C3604, Barrel: Brass C3604, Spring: SUS304, Housing: PA46/PA9T

• Magnet: Material: Neodymium iron boron, Performance: N52, Salt spray: 24H, Pole: S (South Pole) - N (North Pole)

• Plating: Plunger: 1-3μ"Au over 50μ"Ni, Barrel: 1-3μ"Au over 50μ"Ni




Technical Specifications

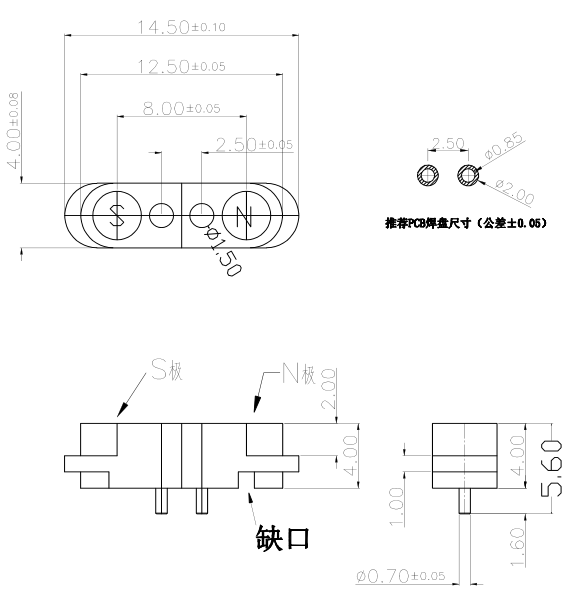

Male Part: 2pin male magnetic connector spec

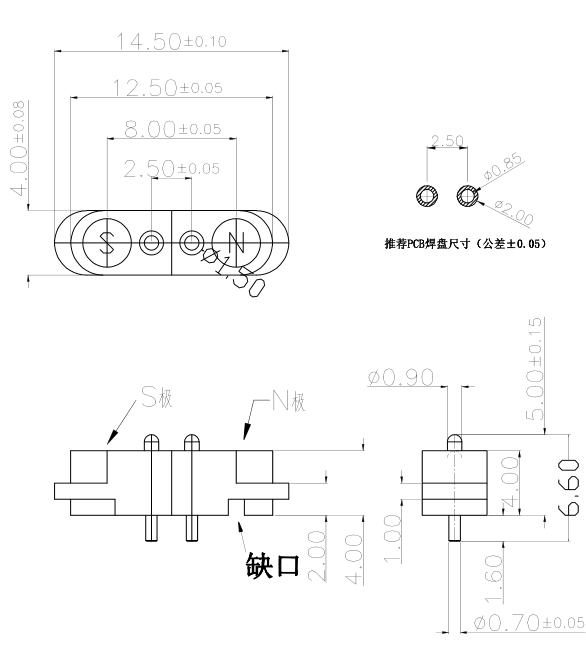

Male Part: 2pin female magnetic connector spec

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic Connector Application:

Why do customers choose UNION?

1. Professional customization service

Different products and solutions can be designed according to different customer needs

2. Fast sample production capability

Standard product 2-3 days sample, new custom sample 7 working days, mold opening product 12 days

3. Strict quality control system

The concept of quality first runs through the entire production and inspection process, and strictly controls each process to ensure the quality of customer satisfaction.

4. Processing with imported components

A small number of needle shafts are machined from imported precision lathes,
and most of the needle shafts are made of imported cold stamping for higher stability.

5. High-precision test equipment

Provide accurate and precise testing to continuously improve product quality

6. Reasonable cost control procedures

Save costs, eliminate waste, optimize processes, and highlight cost competitiveness

7. Product environmental standards

The product meets the EU ROHS standard and meets halogen

• Payment Methods: T/T, PayPal, OCBC

• Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

• Production Lead Time: 10-15 working days

• Markets Served: America, Europe, Asia, South Africa

• Trade Term: EXW

• Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Customization Available - Contact us for tailored solutions!

Email: [email protected]
