8pin magnet attraction spring loaded pogo pin connector gold plating 8pin magnetic connector

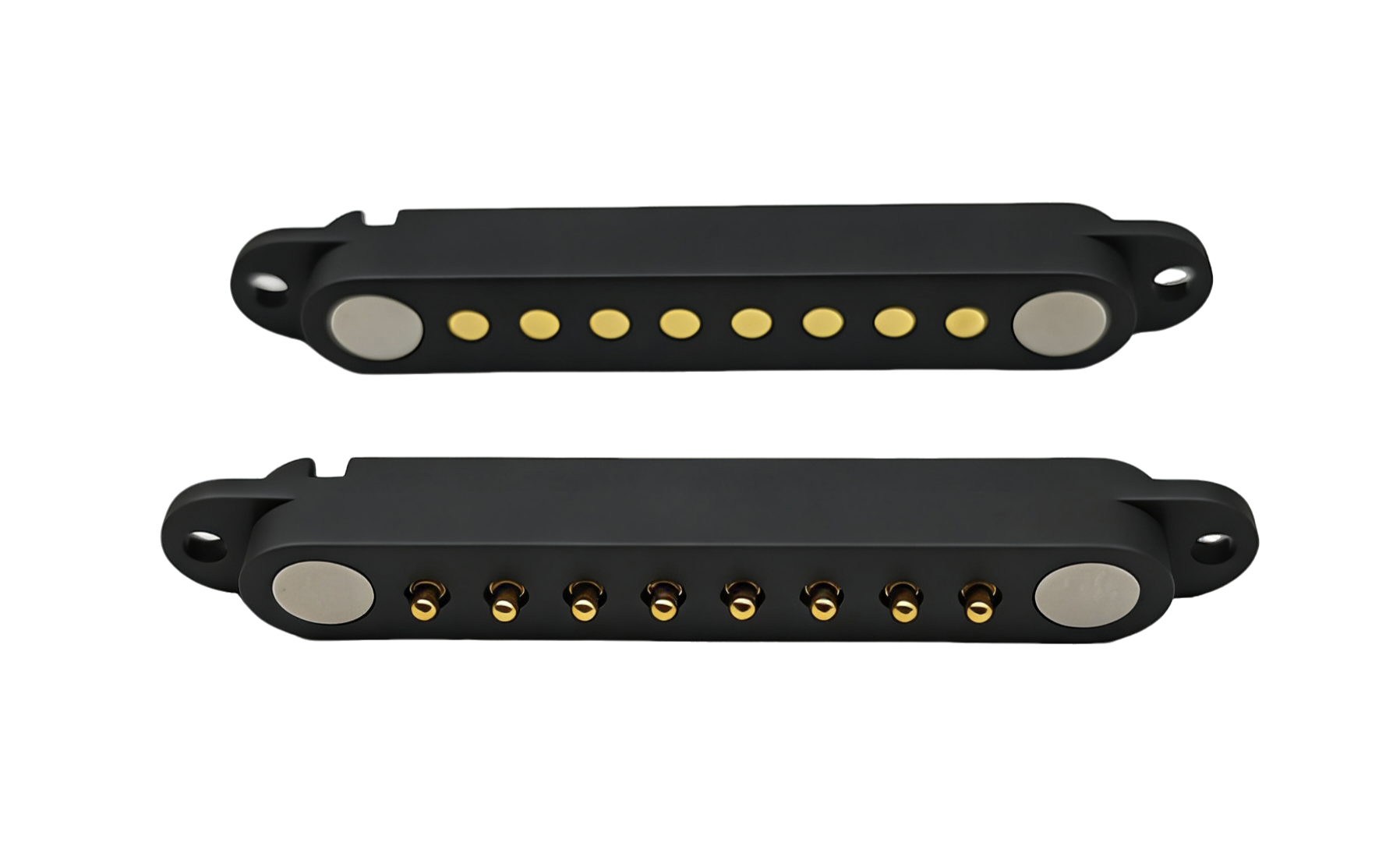

8pin magnet attraction spring loaded pogo pin connector gold plating 8pin magnetic connector，Union Precision Electronics Co., Ltd. is a professional manufacturer specializing in the R&D and production of connector components.

UPE is ISO9001 and ISO14001 certified, ensuring all products comply with EU RoHS environmental standards. We source key raw materials from Taiwan and Japan, delivering high-performance electronic components at competitive prices.

Material Composition

Plunger (Contact Pin): Brass (C3604) - Free-cutting brass for conductivity

Barrel: Brass (C3604)

Spring: Stainless Steel (SUS304)

Housing: High-Tech Plastic (PA46 / PA9T) - Suitable for high-temperature processes

Plating Specifications

Plunger Plating: 3 micro-inches Gold over 50 micro-inches Nickel

Barrel Plating: 3 micro-inches Gold over 50 micro-inches Nickel

Purpose: Gold flash ensures low contact resistance and corrosion resistance; nickel under-plating provides barrier layer

Electrical Characteristics

Rated Current: 2 Amperes (DC)

Rated Voltage: 12 Volts (DC)

Contact Resistance: 50 milliOhms Max. (measured at working height)

Mechanical Properties

Operating Force: 35 ±10 grams-force (gf) at working height

Durability (Life Cycle): 10,000 cycles (minimum)

Environmental & Thermal Data

Operational Temperature Range: -40°C to 85°C

Withstanding Temperature (Peak): 260°C - Suitable for reflow soldering processes

Compliance & Testing

Certification: RoHS Compliant

Quality Assurance: 24-Hour Delay Test for stability verification

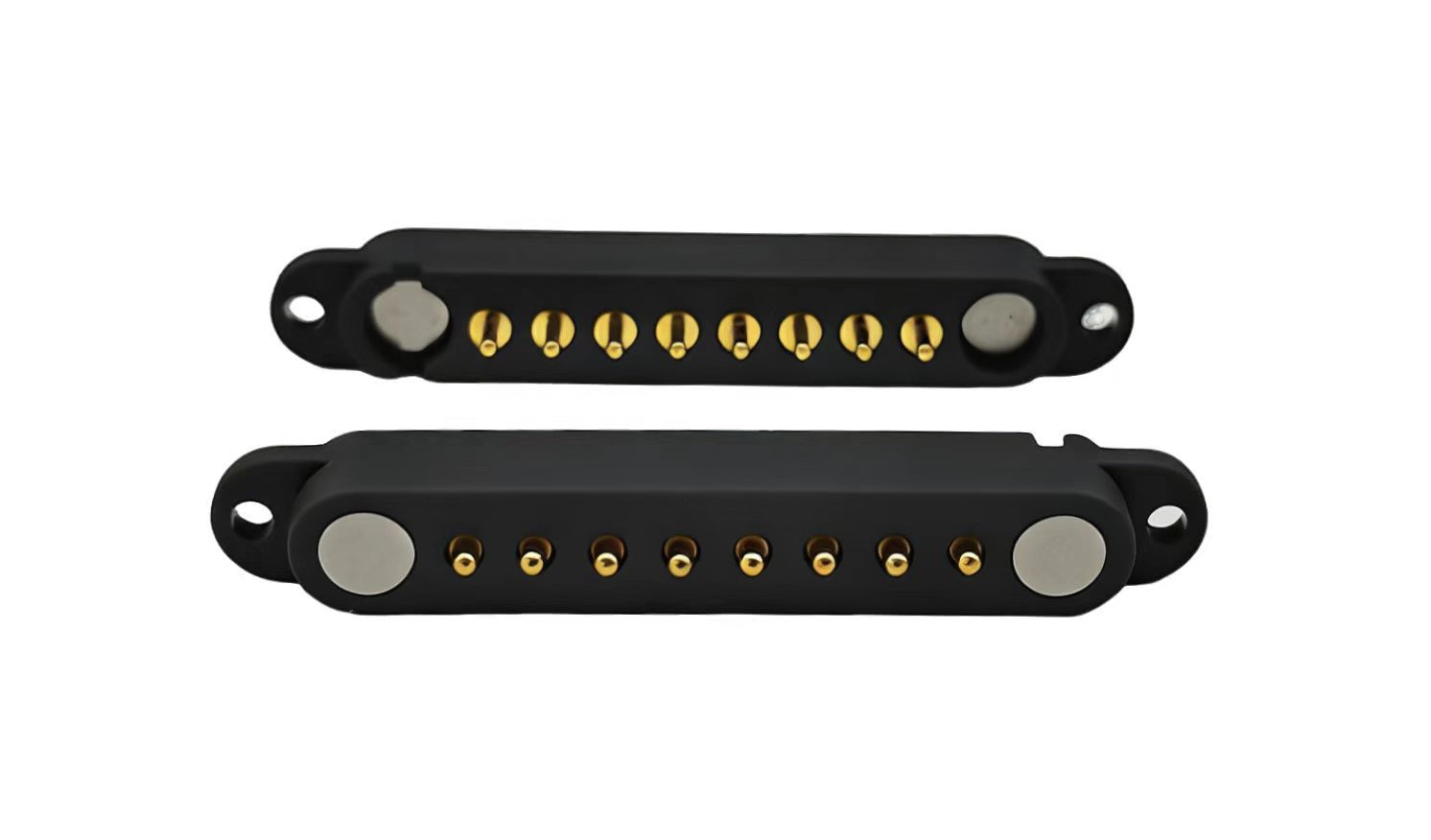

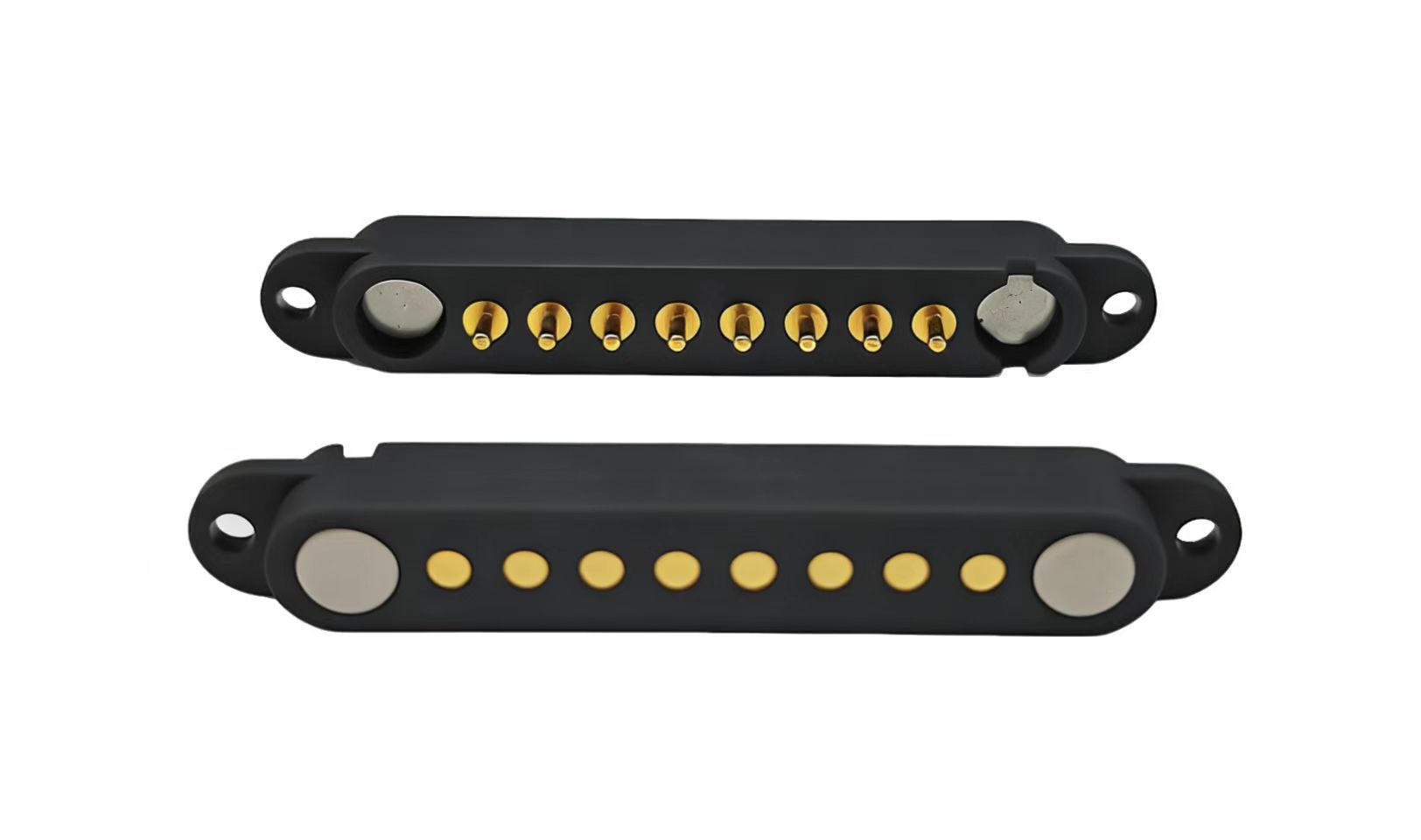

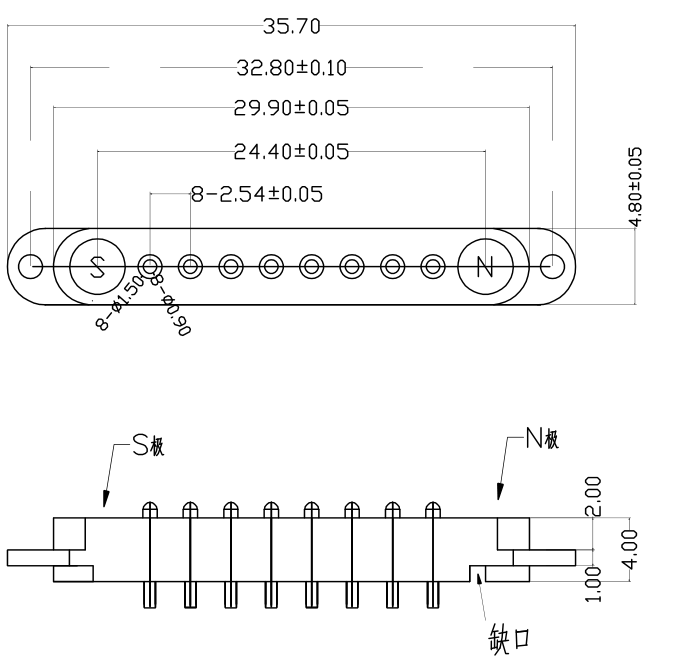

Male Part: 8pin male magnetic connector spec

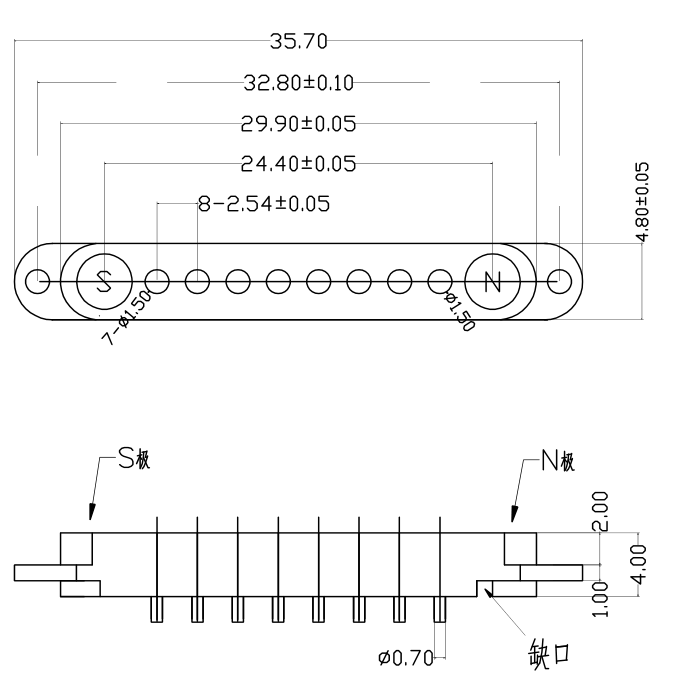

Male Part: 8pin female magnetic connector spec

8pin magnetic  connector parameter

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic Connector Application:

Why do customers choose UNION?

1. Professional customization service

Different products and solutions can be designed according to different customer needs

2. Fast sample production capability

Standard product 2-3 days sample, new custom sample 7 working days, mold opening product 12 days

3. Strict quality control system

The concept of quality first runs through the entire production and inspection process, and strictly controls each process to ensure the quality of customer satisfaction.

4. Processing with imported components

A small number of needle shafts are machined from imported precision lathes,
and most of the needle shafts are made of imported cold stamping for higher stability.

5. High-precision test equipment

Provide accurate and precise testing to continuously improve product quality

6. Reasonable cost control procedures

Save costs, eliminate waste, optimize processes, and highlight cost competitiveness

7. Product environmental standards

The product meets the EU ROHS standard and meets halogen

Payment Methods: T/T, PayPal, OCBC

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

Production Lead Time: 10-15 working days

Markets Served: America, Europe, Asia, South Africa

Trade Term: EXW

Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Any question, please send to [email protected]
