2.54mm pitch  7 pin magnetic absorption male female pogo pin for handyblock

2.54mm pitch  7 pin magnetic absorption male female pogo pin for handyblock，Union Precision Electronics Co., Ltd. is a professional manufacturer specializing in the R&D and production of connector components.

Technical Specifications

Material: Plunger: Brass C3604 | Barrel: Brass C3604 | Spring: SUS304 | Housing: PA46/PA9T

Plating: Plunger: 3u"Au over 50u"Ni | Barrel: 3u"Au over 50u"Ni

Electrical: Rated Current & Voltage: DC12V; 2A | Contact Resistance: 50mohm Max. at working height

Work Temperature: Withstanding High Temperature: 260°C | Operational Temperature: -40~85°C

Mechanical: Force: 35±10gf at working height | Durability: 10000 cycles (min)

Testing: 24 hours delay test | RoHS compliant

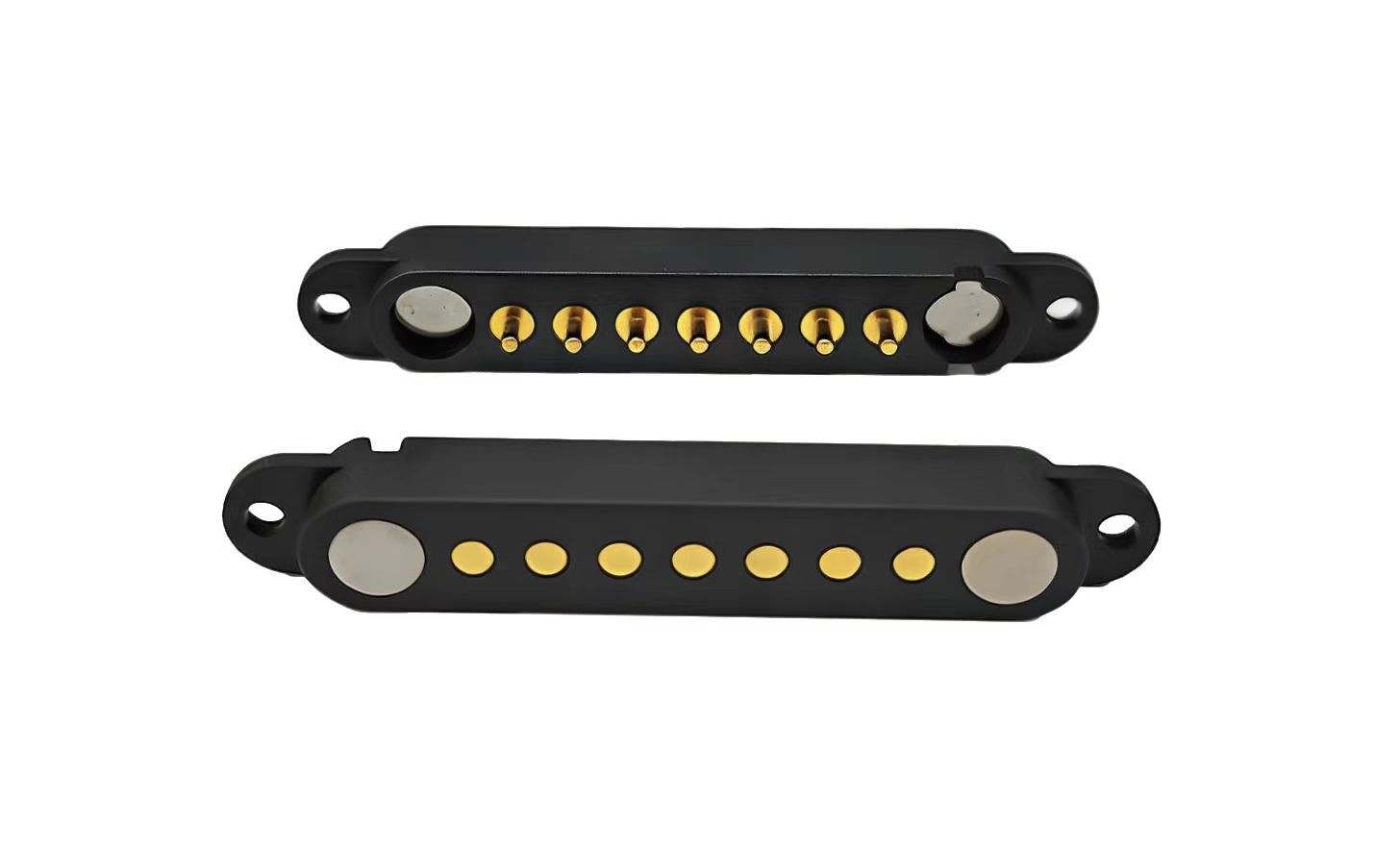

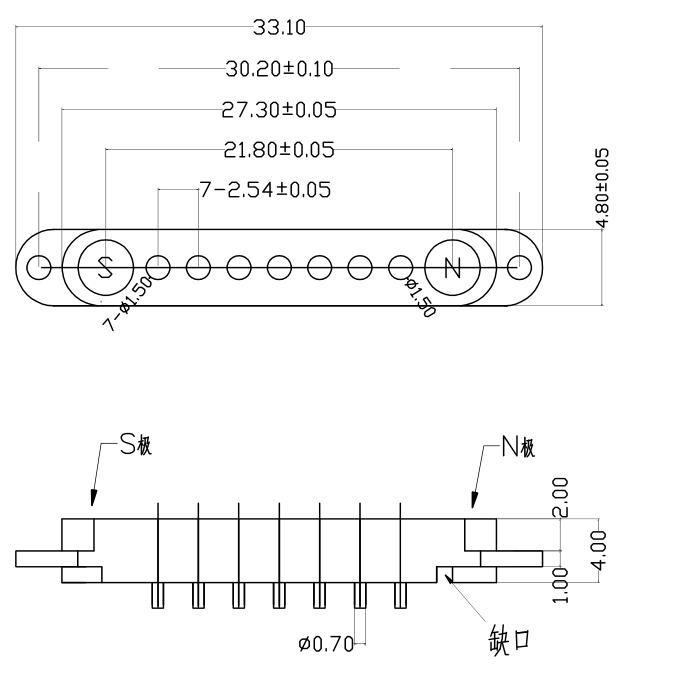

Male Part: 7pin male magnetic connector spec

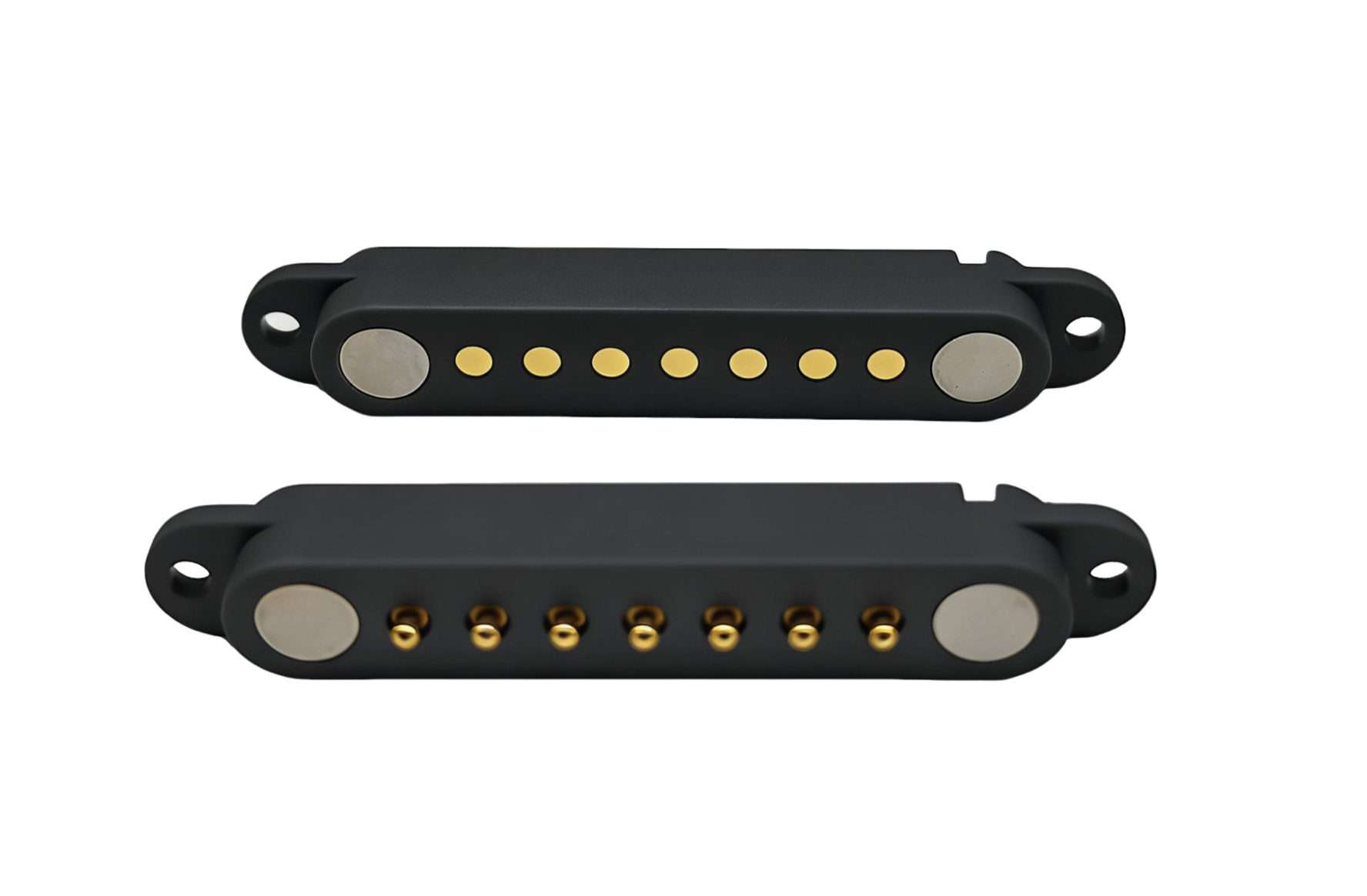

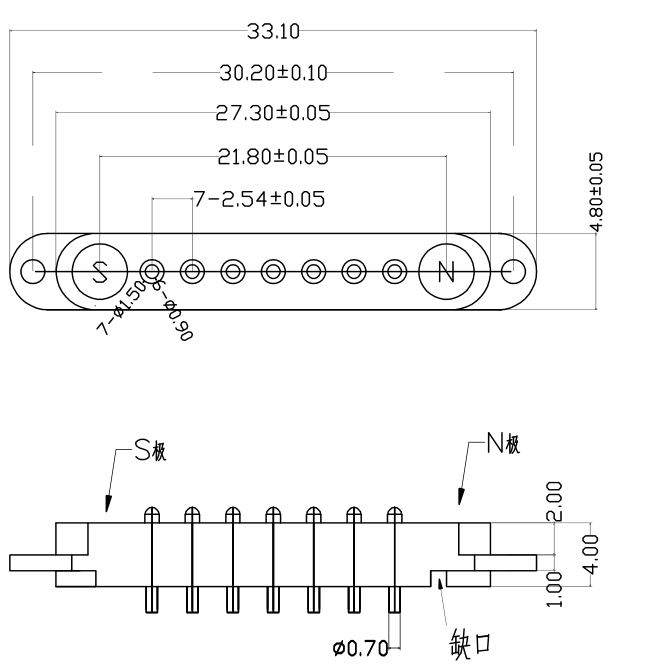

Male Part: 7pin female magnetic connector spec

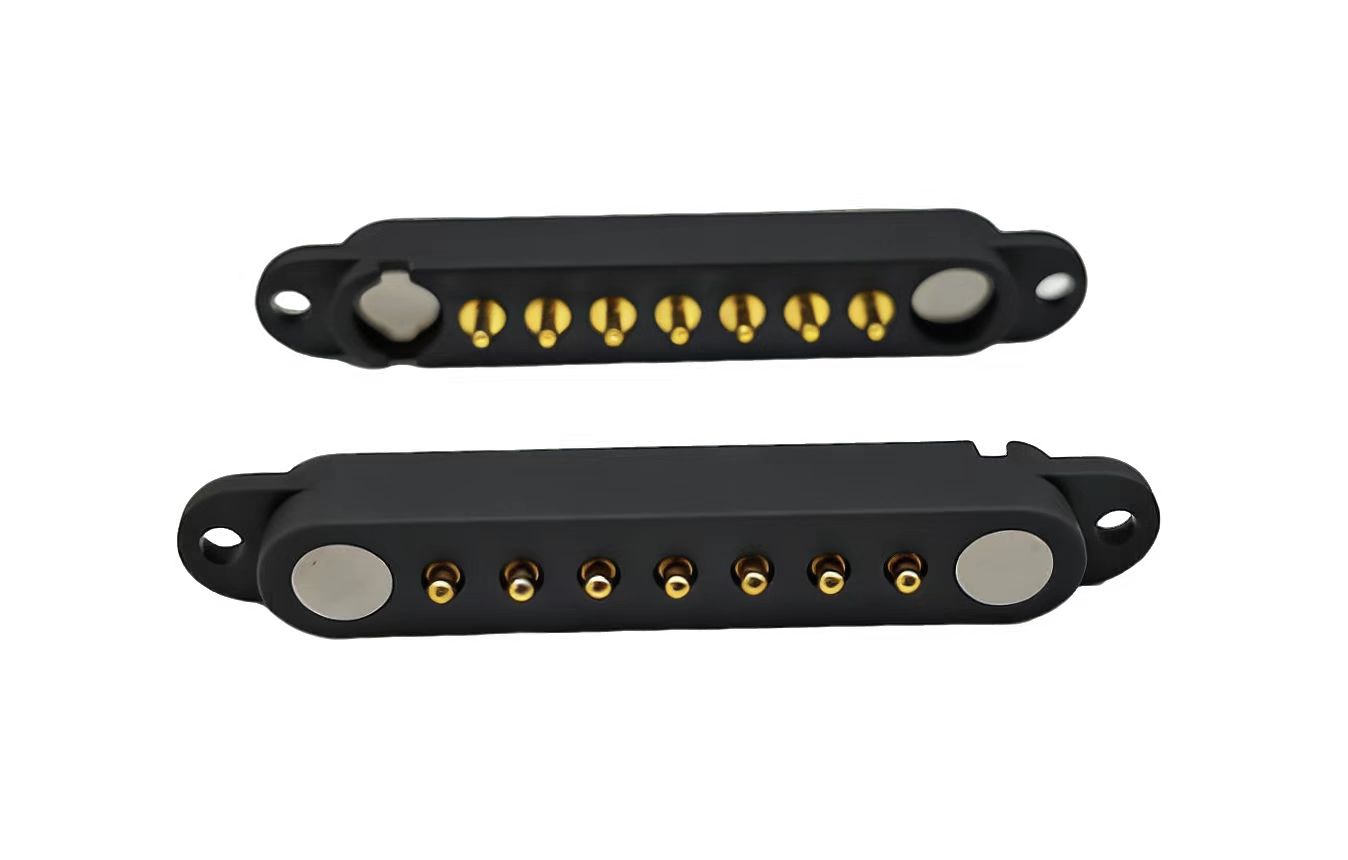

7pin magnetic  connector parameter

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic Connector Application:

Why do customers choose UNION?

1. Professional customization service

Different products and solutions can be designed according to different customer needs

2. Fast sample production capability

Standard product 2-3 days sample, new custom sample 7 working days, mold opening product 12 days

3. Strict quality control system

The concept of quality first runs through the entire production and inspection process, and strictly controls each process to ensure the quality of customer satisfaction.

4. Processing with imported components

A small number of needle shafts are machined from imported precision lathes,
and most of the needle shafts are made of imported cold stamping for higher stability.

5. High-precision test equipment

Provide accurate and precise testing to continuously improve product quality

6. Reasonable cost control procedures

Save costs, eliminate waste, optimize processes, and highlight cost competitiveness

7. Product environmental standards

The product meets the EU ROHS standard and meets halogen

Payment Methods: T/T, PayPal, OCBC

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

Production Lead Time: 10-15 working days

Markets Served: America, Europe, Asia, South Africa

Trade Term: EXW

Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Any question, please send to [email protected]
